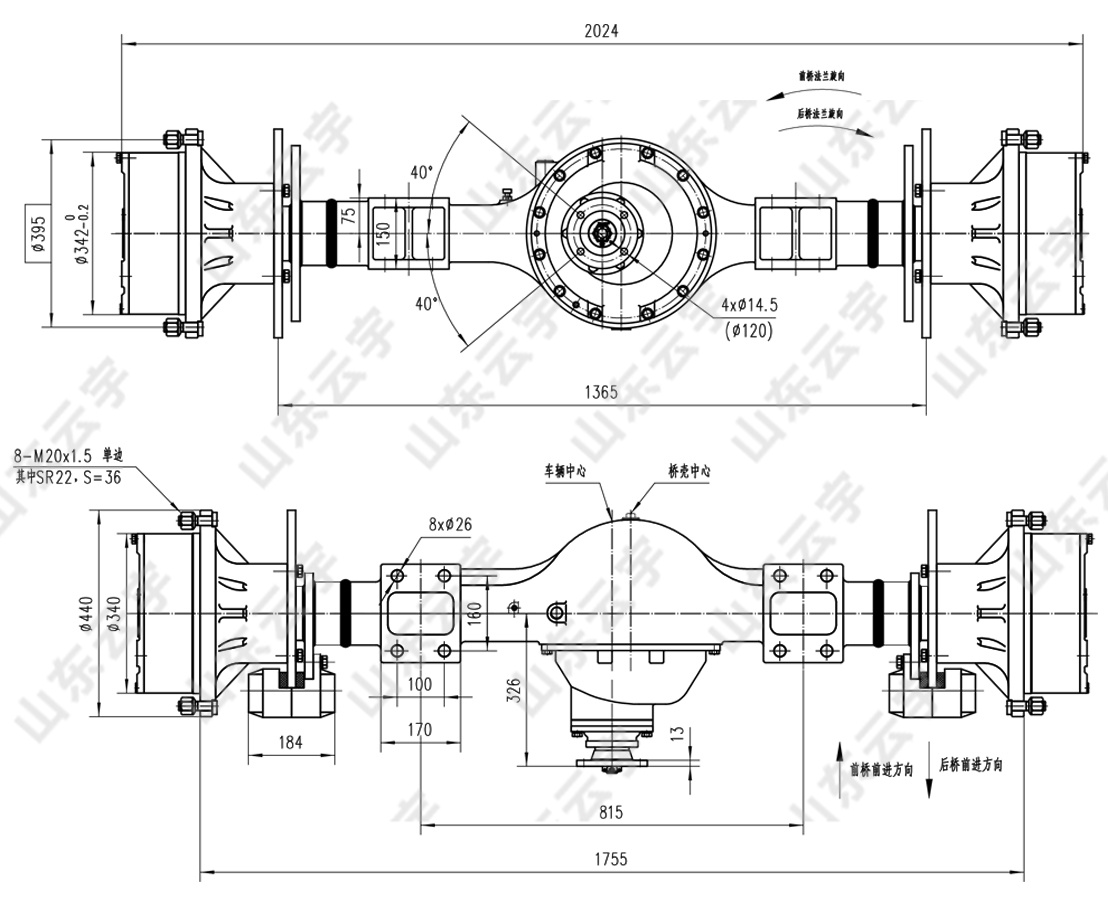

● Two-stage decelerating structrue is adopted for the drive axle. ● Spiral bevel gears with great load-carrying capacity and high efficiency are adopted for main drive. ● The wheel is planetary decelerating structure. ● The main reducer is equipped with the common bevel-gear differential mechanism with simple structure and flexible differential function. ● Cast steel with adequate rigidity serves as material for the axle housing. ● The brake in clamp-disc braking mode has great braking moment. ● Suitable for a ZL25 loader. |
Main transmission ratio | Transmission ratio at wheel | Total | Axle load | Input torque | Clamp-disc brake | |||||||
Number of cylinders | Cylinder diameter | Braking oil pressure | Oil inlet | Braking radius | Braking moment | |||||||
4.875 | 5.875 | 4.4 | 21.45 | 25.77 | 13500Kg | 1700N.m | 4 | 75mm | 9.8MPa | M12×1.25 | 173mm | 9000N.m/pce |
